Dimensionality Reduction

Dimensionality reduction is the art of compressing data without losing its essence.

Why do we need dimensionality reduction?

  1. The curse of dimensionality
  1. Redundancy in large data sets

Example:

Coding example:

Let’s generate some simple data set.

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_iris

iris = load_iris()
X = iris.data                  # shape (150, 4) = sepal len/width, petal len/width
y = iris.target                # 0,1,2
target_names = iris.target_names

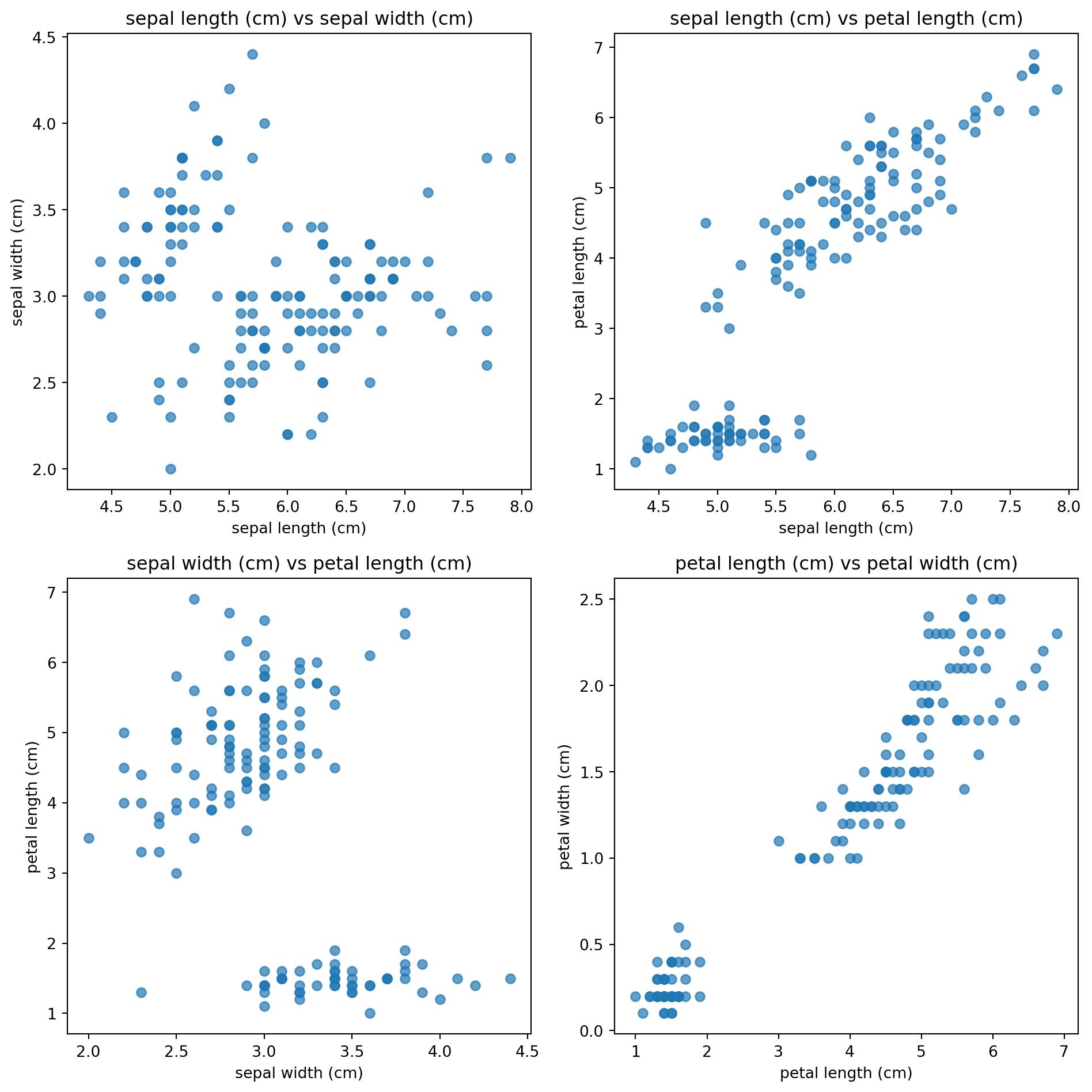

Let’s have a look at the data

The data is 4 dimensional, so we need to plot 4 plots to showcase the distribution of each dimension against each other

feature_names = iris.feature_names
fig, axs = plt.subplots(2, 2, figsize=(10, 10))
axs[0, 0].scatter(X[:, 0], X[:, 1], alpha=0.7)
axs[0, 0].set_xlabel(feature_names[0])
axs[0, 0].set_ylabel(feature_names[1])
axs[0, 0].set_title(f"{feature_names[0]} vs {feature_names[1]}")

# Scatter plot 2: Feature 0 vs Feature 2
axs[0, 1].scatter(X[:, 0], X[:, 2], alpha=0.7)
axs[0, 1].set_xlabel(feature_names[0])
axs[0, 1].set_ylabel(feature_names[2])
axs[0, 1].set_title(f"{feature_names[0]} vs {feature_names[2]}")

# Scatter plot 3: Feature 1 vs Feature 2
axs[1, 0].scatter(X[:, 1], X[:, 2], alpha=0.7)
axs[1, 0].set_xlabel(feature_names[1])
axs[1, 0].set_ylabel(feature_names[2])
axs[1, 0].set_title(f"{feature_names[1]} vs {feature_names[2]}")

# Scatter plot 4: Feature 2 vs Feature 3
axs[1, 1].scatter(X[:, 2], X[:, 3], alpha=0.7)
axs[1, 1].set_xlabel(feature_names[2])
axs[1, 1].set_ylabel(feature_names[3])
axs[1, 1].set_title(f"{feature_names[2]} vs {feature_names[3]}")

plt.tight_layout()
plt.show()

Standardize the data

Standardizing is important as otherwise one “longer” dimension overpowers the “shorter” ones.

mu = X.mean(axis=0)                  # (d,)
sigma = X.std(axis=0, ddof=1)        # (d,)
X_std = (X - mu) / sigma

Calculate the covariance matrix

Next we calculate the covariance matrix for X_std.

The covariance is given by:

\[\text{cov}(X, Y) = \frac{1}{n - 1} \sum_{i=1}^{n} (X_i - \bar{X})(Y_i - \bar{Y})\]

You can use the fact that the unnormalized covariance of a matrix X is given by:

\[ {X}^T {X} = \begin{bmatrix} \sum \tilde{x}_1^2 & \sum \tilde{x}_1 \tilde{x}_2 & \cdots \\ \sum \tilde{x}_2 \tilde{x}_1 & \sum \tilde{x}_2^2 & \cdots \\ \vdots & \vdots & \ddots \end{bmatrix} \]

n_samples = X_std.shape[0]
Cov = (X_std.T @ X_std) / (n_samples - 1)

Getting the eigen values

The formal definition of the eigen values decomposition for a square matrix A is: \[ \begin{aligned} A \cdot v &= \lambda v \\ A \cdot v - \lambda v &= 0 \\ (A - \lambda I) v &= 0 \end{aligned} \]

We now solve for \(\lambda\) in the determinant of this equation:

\[det(A \cdot v - \lambda v )= 0\] which gives a polynomoal in \(\lambda\). Solve for \(\lambda\) (the roots are the eigen values).

Suppose a transformation (matrix) stretches space differently along different axes: \[ A = \begin{bmatrix} 2 & 1 \\ 1 & 2 \end{bmatrix} \]

\[\begin{aligned} det(A \cdot v - \lambda v )= 0 \\ \end{aligned}\]

becomes:

\[ \det(A - \lambda I) = \begin{vmatrix} 2 - \lambda & 1 \\ 1 & 2 - \lambda \end{vmatrix} = (2 - \lambda)(2 - \lambda) - (1)(1) = (2 - \lambda)^2 - 1 = \lambda^2 - 4 \lambda + 3 \]

This leads us to the solutions \(\lambda\) = 1 and \(lambda\) = 3.

Getting the eigenvectors

To get the eigenvectors, we have to plug in the eigenvalues into the equation above and solve for \(v\): \[ (A - \lambda I) v = 0\]

For λ = 3 \[ A - 3I = \begin{pmatrix}2 & 1\\[2pt] 1 & 2\end{pmatrix} - 3\begin{pmatrix}1 & 0\\[2pt] 0 & 1\end{pmatrix} = \begin{pmatrix}2-3 & 1\\[2pt] 1 & 2-3\end{pmatrix} = \begin{pmatrix}-1 & 1\\[2pt] 1 & -1\end{pmatrix}. \]

From this,set up the equation: \[ \begin{pmatrix} -1 & 1 \\ 1 & -1 \end{pmatrix} \begin{pmatrix} x \\ y \end{pmatrix} = \begin{pmatrix} 0 \\ 0 \end{pmatrix} \]

This gives the equation: \[ x + y = 0 \quad \Rightarrow \quad y = x \] So, any vector of the form \[\begin{pmatrix} x \\ x \end{pmatrix}\]

is an eigenvector. Choose a simple one like x = 1: \[v_1 = \begin{pmatrix} 1 \\ 1 \end{pmatrix} \]

For λ = 1

\[ A - I = \begin{pmatrix}2 & 1\\[2pt] 1 & 2\end{pmatrix} - \begin{pmatrix}1 & 0\\[2pt] 0 & 1\end{pmatrix} = \begin{pmatrix}1 & 1\\[2pt] 1 & 1\end{pmatrix}. \]

Set up the equation: \[ \begin{pmatrix} 1 & 1 \\ 1 & 1 \end{pmatrix} \begin{pmatrix} x \\ y \end{pmatrix} = \begin{pmatrix} 0 \\ 0 \end{pmatrix} \]

This gives the equation: \[ x + y = 0 \quad \Rightarrow \quad y = -x \] So any vector of the form \[\begin{pmatrix} x \\ -x \end{pmatrix}\]

is an eigenvector. Choose x = 1:

\[ v_2 = \begin{pmatrix} 1 \\ -1 \end{pmatrix} \]

Final Eigenpairs

\[ \lambda = 3, \] \[ v_1 = \begin{pmatrix} 1 \\ 1 \end{pmatrix} \]

\[ \lambda_2 = 1, \] \[ v_2 = \begin{pmatrix} 1 \\ -1 \end{pmatrix} \]

In python:

eigvals, eigvecs = np.linalg.eigh(Cov)     # eigvecs columns = eigenvectors
# sort by descending eigenvalue (most variance first)
idx = np.argsort(eigvals)[::-1]
eigvals = eigvals[idx]
eigvecs = eigvecs[:, idx]
print(eigvals)
print(eigvecs)
[2.91849782 0.91403047 0.14675688 0.02071484]
[[-0.52106591  0.37741762  0.71956635  0.26128628]
 [ 0.26934744  0.92329566 -0.24438178 -0.12350962]
 [-0.5804131   0.02449161 -0.14212637 -0.80144925]
 [-0.56485654  0.06694199 -0.63427274  0.52359713]]
import pandas as pd
loadings = pd.DataFrame(
    eigvecs,
    index=feature_names,
    columns=[f"PC{i}" for i in range(1, eigvecs.shape[1]+1)]
)

print("\n=== PCA Eigenvalues & Explained Variance ===")
print(loadings.round(4))

=== PCA Eigenvalues & Explained Variance ===
                      PC1     PC2     PC3     PC4
sepal length (cm) -0.5211  0.3774  0.7196  0.2613
sepal width (cm)   0.2693  0.9233 -0.2444 -0.1235
petal length (cm) -0.5804  0.0245 -0.1421 -0.8014
petal width (cm)  -0.5649  0.0669 -0.6343  0.5236

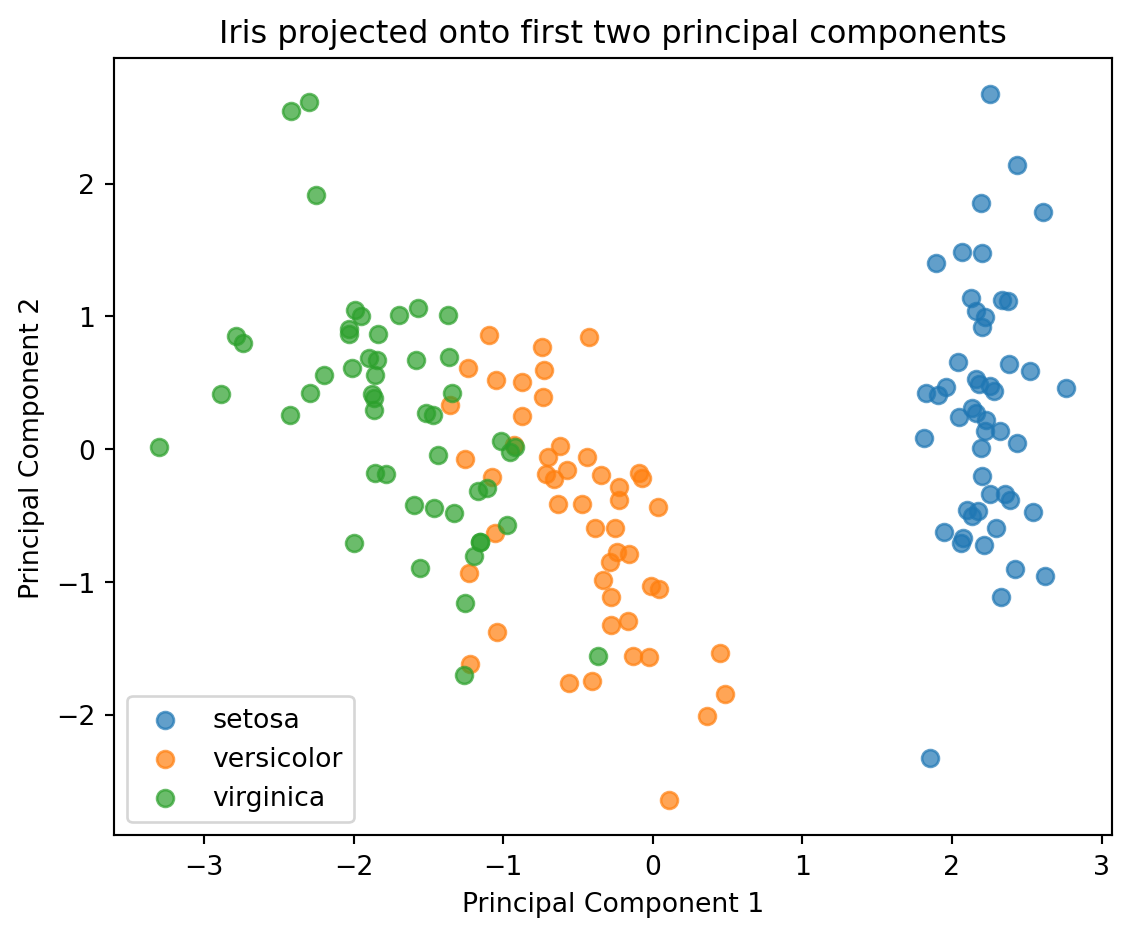

Plotting

Z = X_std @ eigvecs[:, :2]  # shape: (n_samples, 2)
print(Z.shape)
(150, 2)
plt.figure(figsize=(6,5))
for label in np.unique(y):
    mask = (y == label)
    plt.scatter(Z[mask, 0], Z[mask, 1],
                alpha=0.7, s=40, label=target_names[label])

plt.xlabel("Principal Component 1")
plt.ylabel("Principal Component 2")
plt.title("Iris projected onto first two principal components")
plt.legend()
plt.tight_layout()
plt.show()

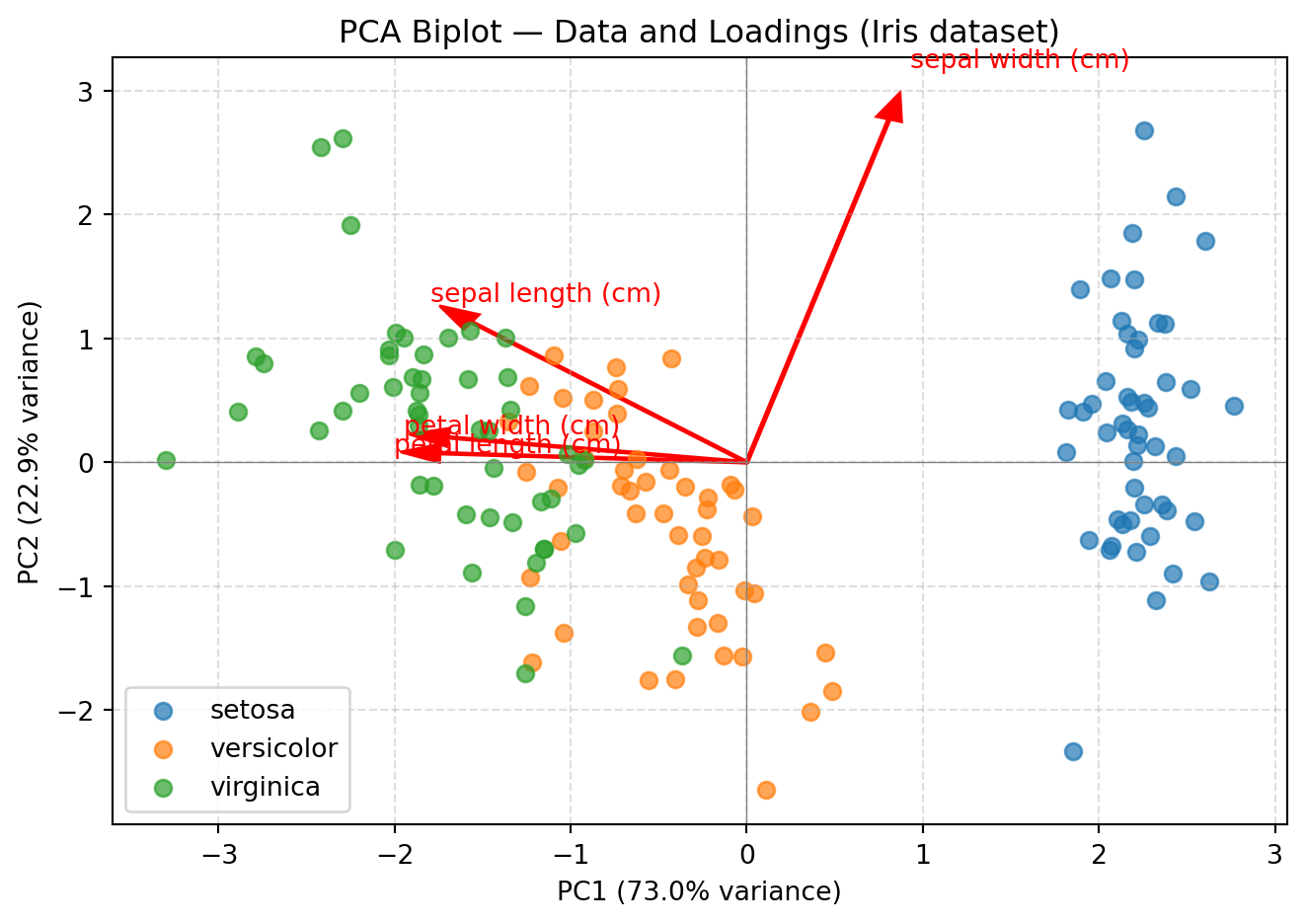

# --- P Plot eigenvectors as red arrows
# Scale arrows by eigenvalues (optional: to make them more visible)
scaling_factor = 3  # tweak for visibility
for i in range(4):
    plt.arrow(0, 0, eigvecs[i, 0]*scaling_factor, eigvecs[i, 1]*scaling_factor,
              color='red', width=0.015, head_width=0.15)
    plt.text(eigvecs[i, 0]*scaling_factor*1.15,
             eigvecs[i, 1]*scaling_factor*1.15,
             feature_names[i],
             color='red', fontsize=10)
for label in np.unique(y):
    mask = (y == label)
    plt.scatter(Z[mask, 0], Z[mask, 1],
                alpha=0.7, s=40, label=target_names[label])

# ---  Label axes with variance explained
explained_var_ratio = eigvals / eigvals.sum()
plt.xlabel(f"PC1 ({explained_var_ratio[0]*100:.1f}% variance)")
plt.ylabel(f"PC2 ({explained_var_ratio[1]*100:.1f}% variance)")

plt.title("PCA Biplot — Data and Loadings (Iris dataset)")
plt.legend()
plt.axhline(0, color='gray', linewidth=0.5)
plt.axvline(0, color='gray', linewidth=0.5)
plt.grid(True, linestyle='--', alpha=0.4)
plt.tight_layout()
plt.show()

Putting it all together:

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_iris
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA

# 1) Load data
X, y = load_iris(return_X_y=True)
target_names = ["setosa", "versicolor", "virginica"]

# 2) Standardize the data (important for PCA)
scaler = StandardScaler()
X_std = scaler.fit_transform(X)

# 3) Apply PCA to reduce to 2 components (for 2D plotting)
pca = PCA(n_components=2)
X_pca = pca.fit_transform(X_std)

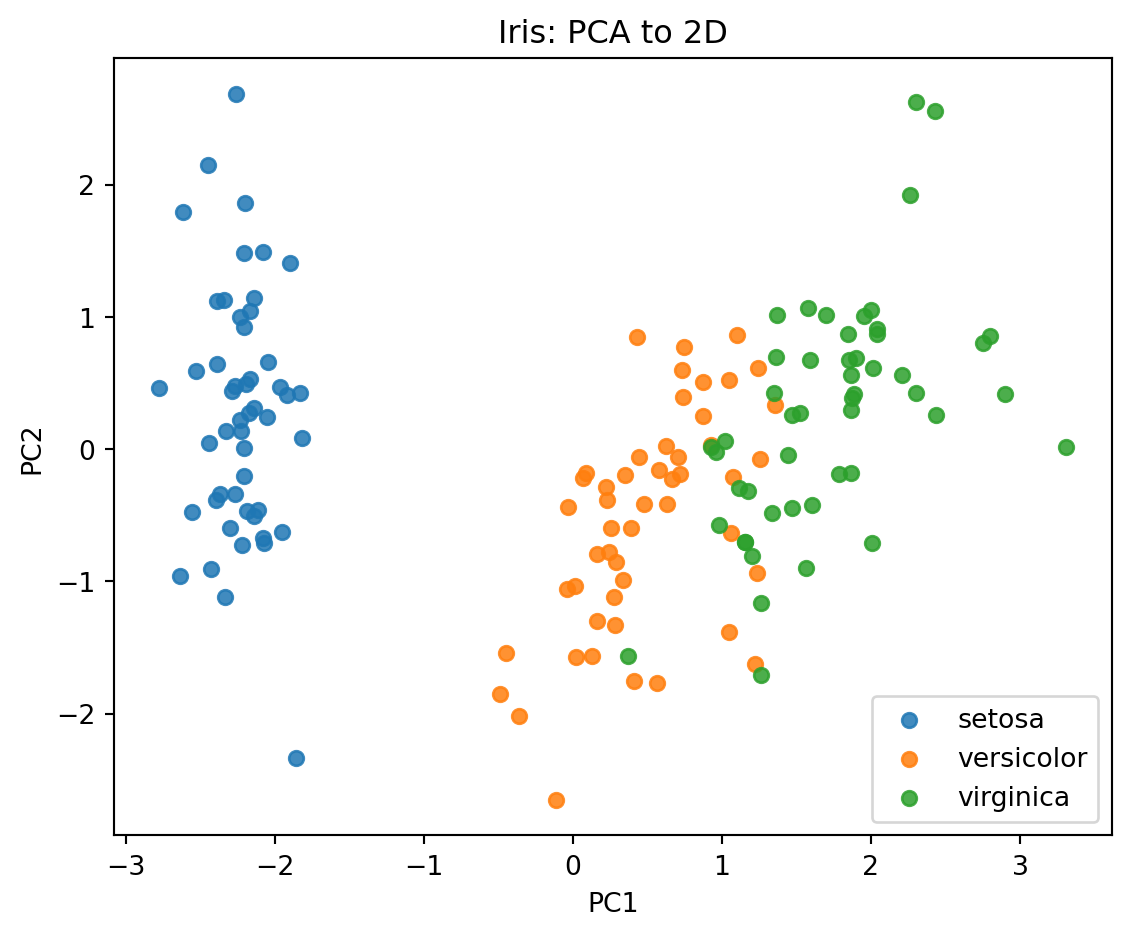

# 4) Plot PC1 vs PC2 (color by species)
plt.figure(figsize=(6,5))
for label in np.unique(y):
    mask = (y == label)
    plt.scatter(X_pca[mask, 0], X_pca[mask, 1], s=30, alpha=0.85, label=target_names[label])
plt.xlabel("PC1")
plt.ylabel("PC2")
plt.title("Iris: PCA to 2D")
plt.legend()
plt.tight_layout()
plt.show()

# 5) Explained variance ratio (how much each PC explains)
print("Explained variance ratio:", np.round(pca.explained_variance_ratio_, 4))
print("Cumulative explained variance:", np.round(np.cumsum(pca.explained_variance_ratio_), 4))

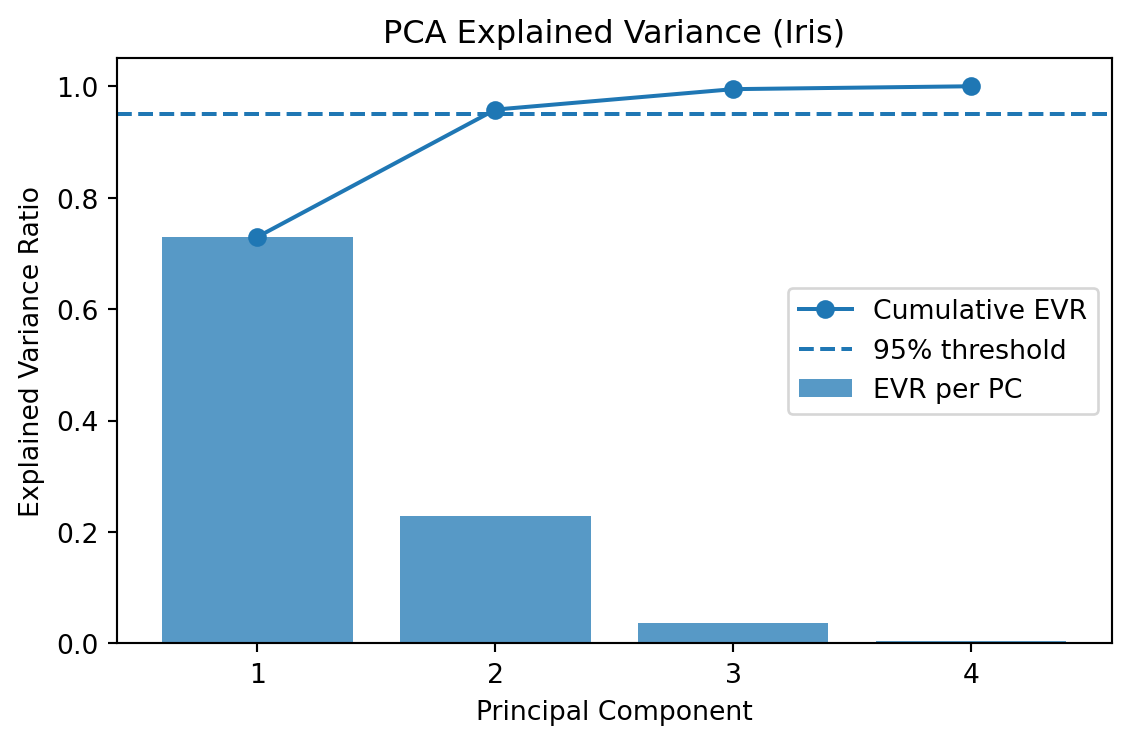

# 6) Scree plot for all components (fit full PCA)
pca_full = PCA(n_components=None)
pca_full.fit(X_std)
evr = pca_full.explained_variance_ratio_
cum = np.cumsum(evr)

plt.figure(figsize=(6,4))
pcs = np.arange(1, len(evr)+1)
plt.bar(pcs, evr, alpha=0.75, label="EVR per PC")
plt.plot(pcs, cum, marker="o", label="Cumulative EVR")
plt.axhline(0.95, linestyle="--", label="95% threshold")
plt.xticks(pcs)
plt.xlabel("Principal Component")
plt.ylabel("Explained Variance Ratio")
plt.title("PCA Explained Variance (Iris)")
plt.legend()
plt.tight_layout()
plt.show()

Explained variance ratio: [0.7296 0.2285]
Cumulative explained variance: [0.7296 0.9581]

Task: PCA using the wine data set.

Repeat the analysis (either scikit learn or the original one) using the wine data set

The wine data set:

•   178 samples × 13 features
•   3 wine classes (like 3D clusters in higher space)

Code:

from sklearn.datasets import load_wine
wine = load_wine()
X = wine.data
y = wine.target
feature_names = wine.feature_names
target_names = wine.target_names

Steps:

  1. Visulalize the data set (some of it)
  2. Standardize the data set
  3. Get the covariance matrix (pro: visulalize using a heatmpa)
  4. Calculate eigenvalues and eigenvectors
  5. Select first two principal components
  6. Transform and plot data into principal components
# ----------------------------
# 1) Load & visualize "some of it"
# ----------------------------
wine = load_wine()
X = wine.data                  # (178, 13)
y = wine.target                # 3 classes
feature_names = wine.feature_names
target_names = wine.target_names

print("X shape:", X.shape)
print("First 5 rows:\n", np.round(X[:5], 2))

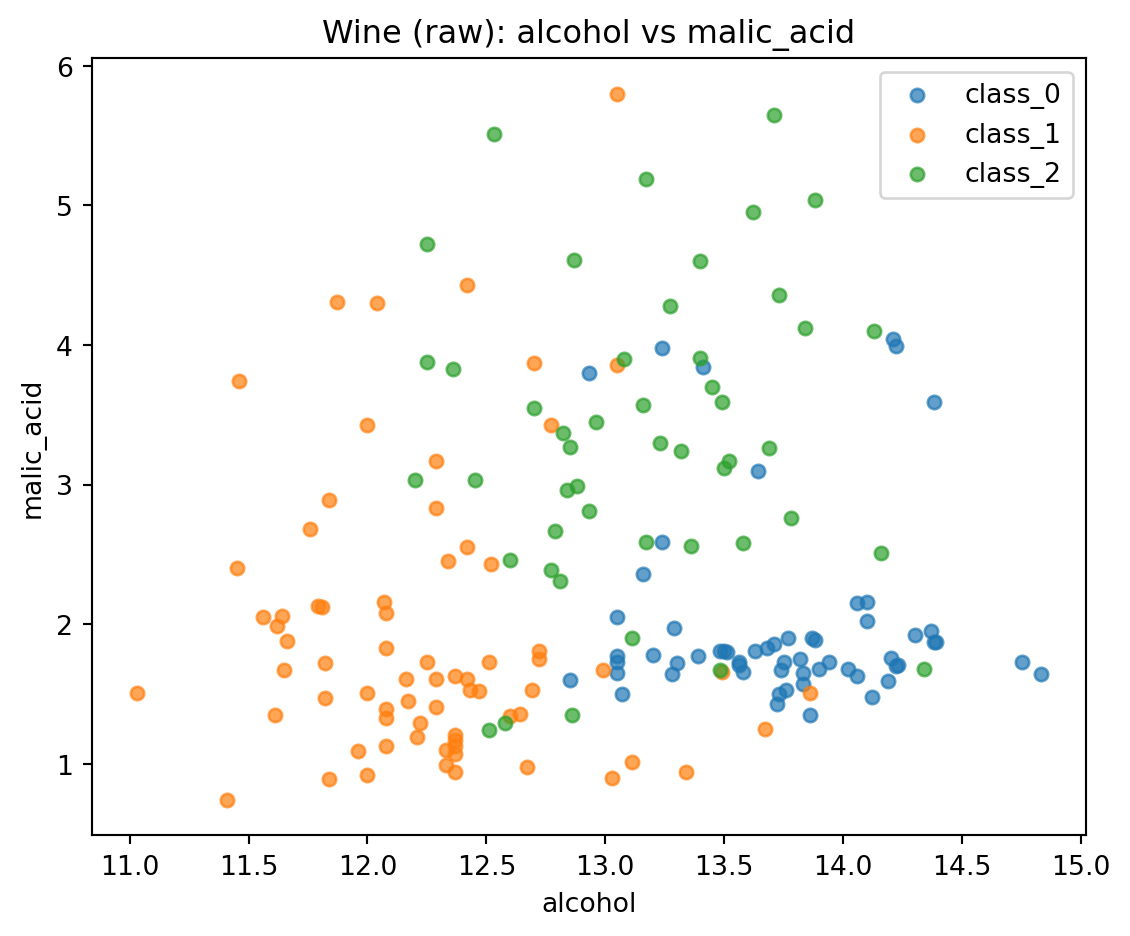

# quick scatter of two raw features (alcohol vs. malic_acid) just to "see" the data
plt.figure(figsize=(6,5))
for lab in np.unique(y):
    m = (y == lab)
    plt.scatter(X[m, 0], X[m, 1], s=25, alpha=0.7, label=target_names[lab])
plt.xlabel(feature_names[0]); plt.ylabel(feature_names[1])
plt.title("Wine (raw): alcohol vs malic_acid")
plt.legend(); plt.tight_layout(); plt.show()

# ----------------------------
# 2) Standardize (mean 0, std 1 per feature)
# ----------------------------
mu = X.mean(axis=0)
sigma = X.std(axis=0, ddof=1)
X_std = (X - mu) / sigma

# ----------------------------

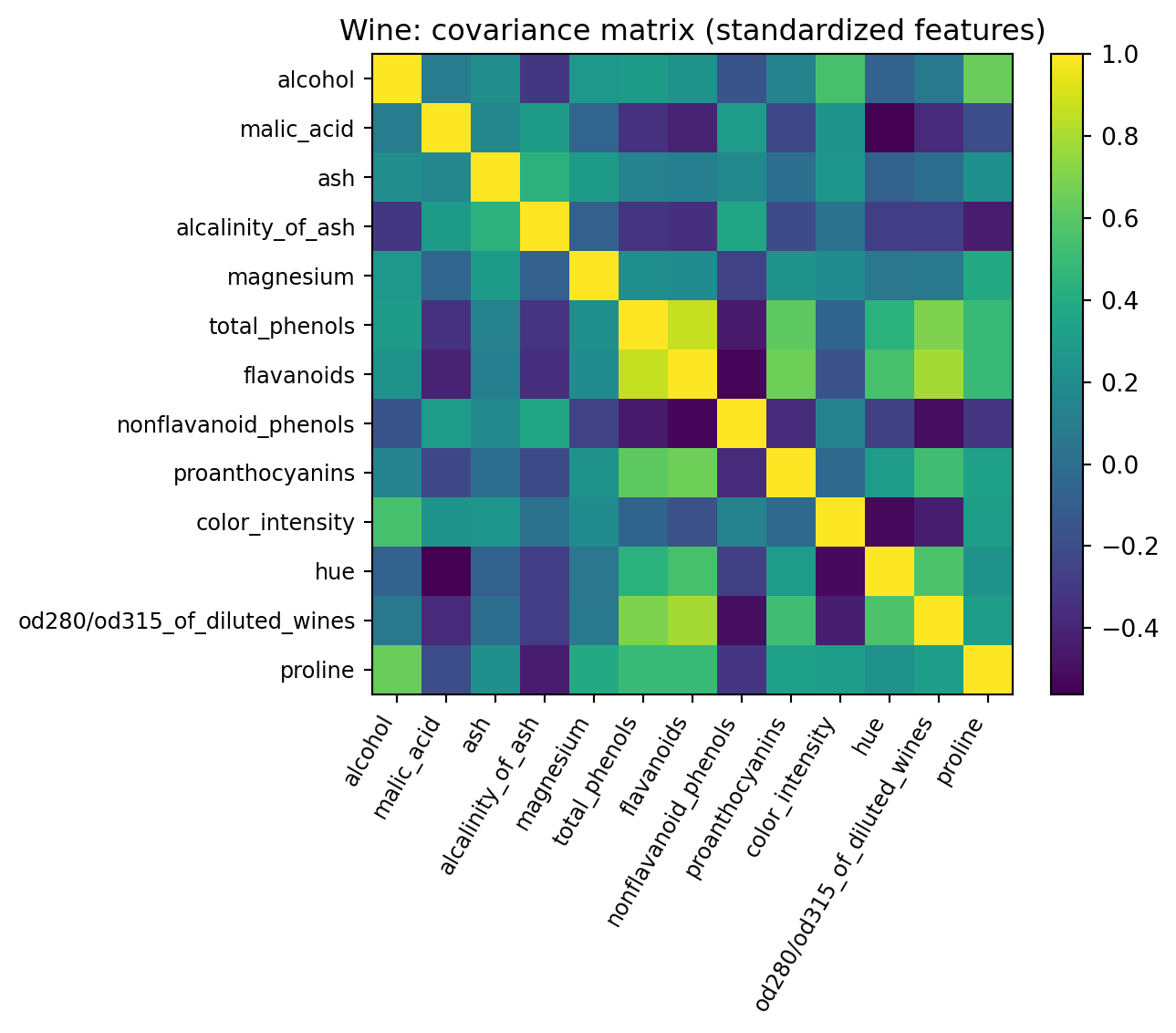

# 3) Covariance matrix + heatmap
#    Cov = (1/(n-1)) * X_std^T X_std
# ----------------------------
n = X_std.shape[0]
Cov = (X_std.T @ X_std) / (n - 1)    # (13 x 13)

plt.figure(figsize=(7.5,6))
im = plt.imshow(Cov, cmap="viridis")
plt.colorbar(im, fraction=0.046, pad=0.04)
plt.xticks(range(len(feature_names)), feature_names, rotation=60, ha='right', fontsize=9)
plt.yticks(range(len(feature_names)), feature_names, fontsize=9)
plt.title("Wine: covariance matrix (standardized features)")
plt.tight_layout(); plt.show()

# ----------------------------
# 4) Eigenvalues & eigenvectors (sorted desc)
# ----------------------------
eigvals, eigvecs = np.linalg.eigh(Cov)         # symmetric -> eigh
idx = np.argsort(eigvals)[::-1]
eigvals = eigvals[idx]
eigvecs = eigvecs[:, idx]                      # columns are principal directions

print("Top 5 eigenvalues:", np.round(eigvals[:5], 4))
evr = eigvals / eigvals.sum()                  # explained variance ratio
print("Explained variance ratio (first 5):", np.round(evr[:5], 4))
print("Cumulative EVR (first 5):", np.round(np.cumsum(evr[:5]), 4))

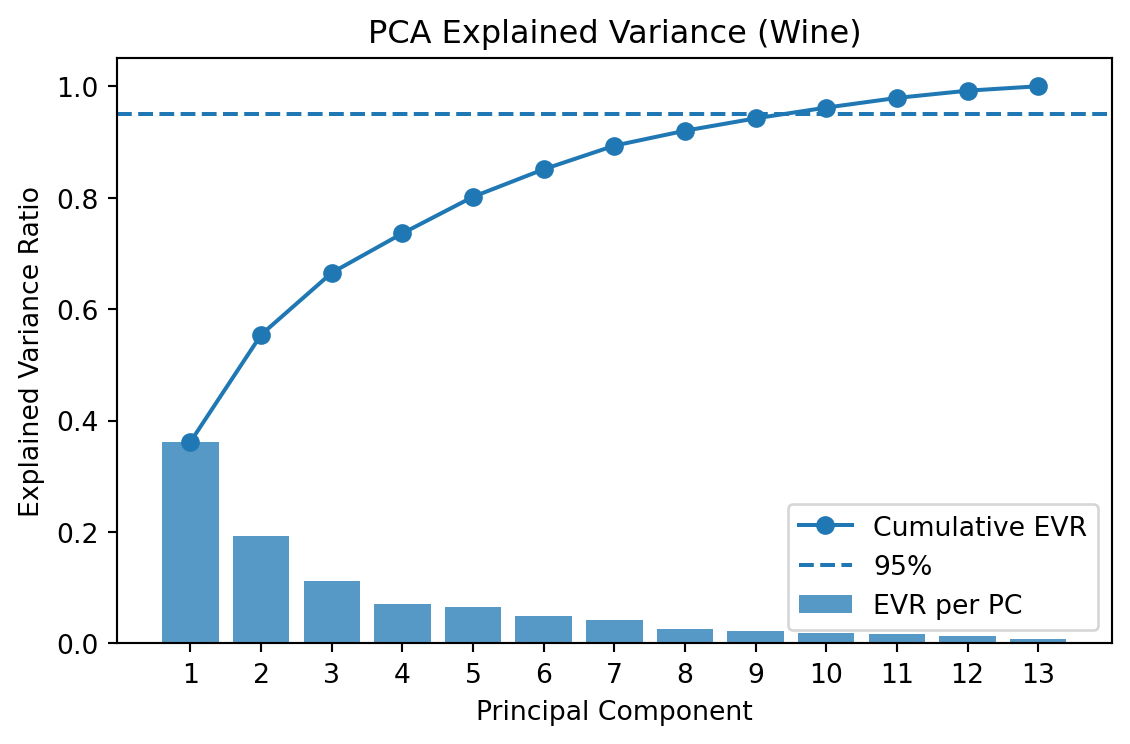

# Scree plot
plt.figure(figsize=(6,4))
pcs = np.arange(1, len(eigvals)+1)
plt.bar(pcs, evr, alpha=0.75, label="EVR per PC")
plt.plot(pcs, np.cumsum(evr), marker="o", label="Cumulative EVR")
plt.axhline(0.95, ls="--", label="95%")
plt.xticks(pcs)
plt.xlabel("Principal Component"); plt.ylabel("Explained Variance Ratio")
plt.title("PCA Explained Variance (Wine)"); plt.legend()
plt.tight_layout(); plt.show()

# ----------------------------
# 5) Select first two principal components
# ----------------------------
W2 = eigvecs[:, :2]            # (13 x 2)

# ----------------------------

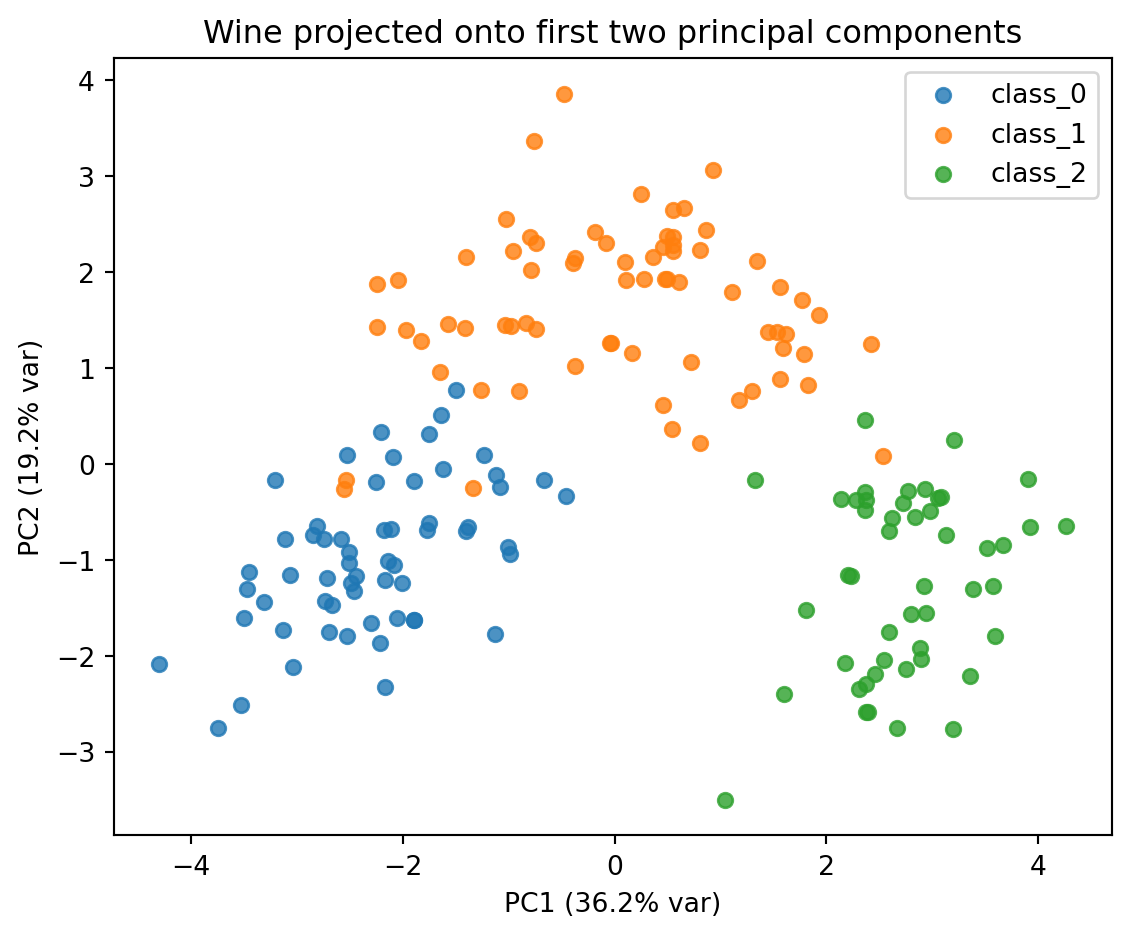

# 6) Transform and plot data in PC1–PC2 space
# ----------------------------
Z = X_std @ W2                 # (178 x 2)

plt.figure(figsize=(6,5))
for lab in np.unique(y):
    m = (y == lab)
    plt.scatter(Z[m, 0], Z[m, 1], s=30, alpha=0.8, label=target_names[lab])
plt.xlabel(f"PC1 ({evr[0]*100:.1f}% var)")
plt.ylabel(f"PC2 ({evr[1]*100:.1f}% var)")
plt.title("Wine projected onto first two principal components")
plt.legend(); plt.tight_layout(); plt.show()

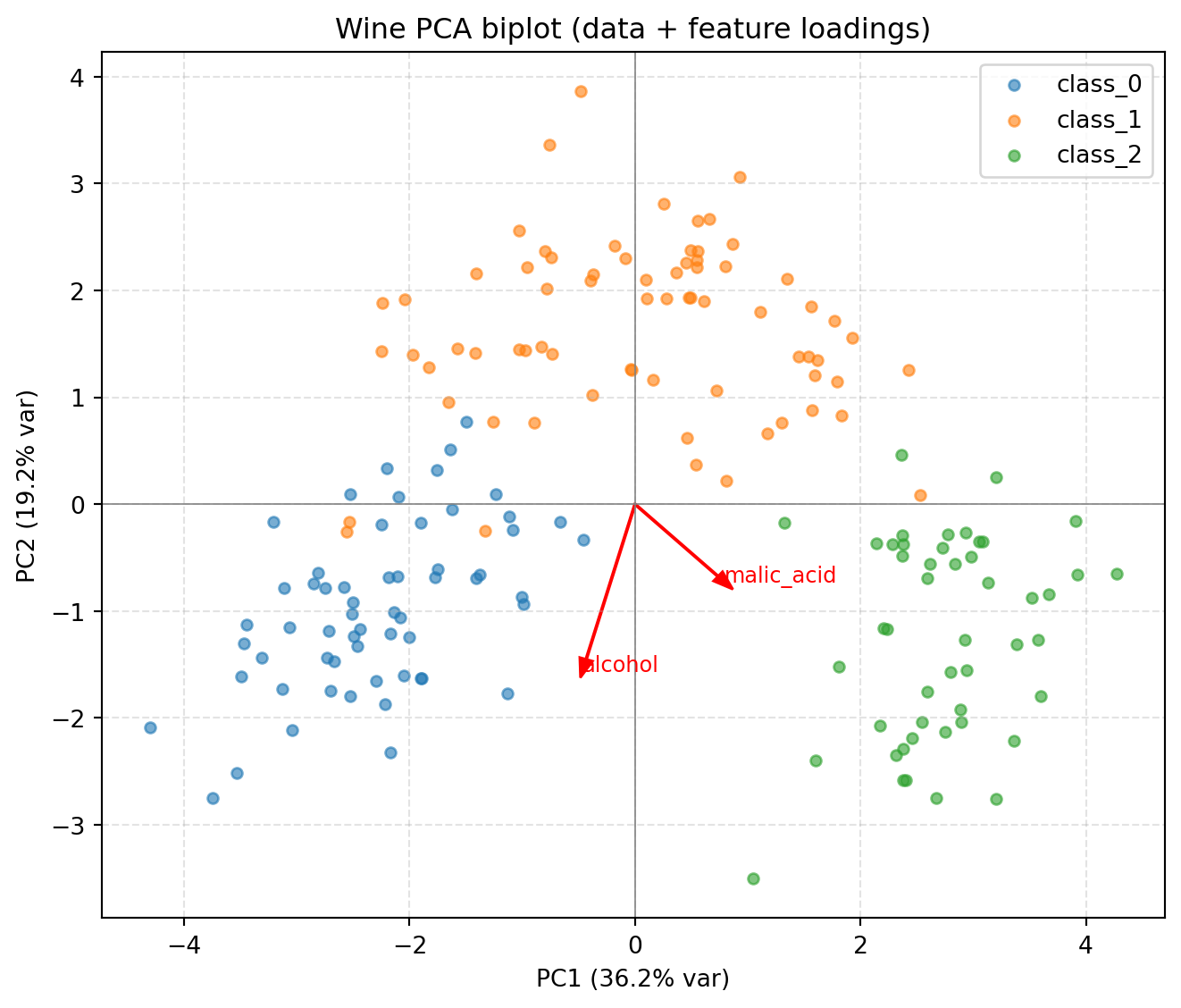

# (Optional) Biplot-style loadings: show how original features contribute to PC1/PC2
scale = 3.0
plt.figure(figsize=(7,6))
for lab in np.unique(y):
    m = (y == lab)
    plt.scatter(Z[m, 0], Z[m, 1], s=20, alpha=0.6, label=target_names[lab])

for i, name in enumerate(feature_names[:2 ]):
    vx, vy = W2[i, 0], W2[i, 1]      # loadings on PC1/PC2 for feature i
    plt.arrow(0, 0, scale*vx, scale*vy, color='red', width=0.01, head_width=0.12)
    plt.text(scale*vx*1.08, scale*vy*1.08, name, color='red', fontsize=9)

plt.xlabel(f"PC1 ({evr[0]*100:.1f}% var)"); plt.ylabel(f"PC2 ({evr[1]*100:.1f}% var)")
plt.title("Wine PCA biplot (data + feature loadings)")
plt.axhline(0, color='gray', lw=0.6); plt.axvline(0, color='gray', lw=0.6)
plt.grid(True, ls='--', alpha=0.35); plt.legend()
plt.tight_layout(); plt.show()
X shape: (178, 13)
First 5 rows:
 [[1.423e+01 1.710e+00 2.430e+00 1.560e+01 1.270e+02 2.800e+00 3.060e+00
  2.800e-01 2.290e+00 5.640e+00 1.040e+00 3.920e+00 1.065e+03]
 [1.320e+01 1.780e+00 2.140e+00 1.120e+01 1.000e+02 2.650e+00 2.760e+00
  2.600e-01 1.280e+00 4.380e+00 1.050e+00 3.400e+00 1.050e+03]
 [1.316e+01 2.360e+00 2.670e+00 1.860e+01 1.010e+02 2.800e+00 3.240e+00
  3.000e-01 2.810e+00 5.680e+00 1.030e+00 3.170e+00 1.185e+03]
 [1.437e+01 1.950e+00 2.500e+00 1.680e+01 1.130e+02 3.850e+00 3.490e+00
  2.400e-01 2.180e+00 7.800e+00 8.600e-01 3.450e+00 1.480e+03]
 [1.324e+01 2.590e+00 2.870e+00 2.100e+01 1.180e+02 2.800e+00 2.690e+00
  3.900e-01 1.820e+00 4.320e+00 1.040e+00 2.930e+00 7.350e+02]]
Top 5 eigenvalues: [4.7059 2.497  1.4461 0.919  0.8532]
Explained variance ratio (first 5): [0.362  0.1921 0.1112 0.0707 0.0656]
Cumulative EVR (first 5): [0.362  0.5541 0.6653 0.736  0.8016]

import numpy as np
import matplotlib.pyplot as plt
from sklearn.decomposition import PCA
from sklearn.preprocessing import StandardScaler
from sklearn.datasets import load_iris


components = pca.components_   # eigenvectors (directions)
scores = X_pca                 # principal component scores
X_centered = X_std             # standardized data is already centered

# 4️⃣ First eigenvector (red arrow)
v1 = components[0]
origin = np.mean(X_centered, axis=0)

# 5️⃣ Plot
fig, ax = plt.subplots(figsize=(7,7))
ax.scatter(X_centered[:,0], X_centered[:,1], alpha=0.3, label='Data (centered)')

# Eigenvector direction
ax.arrow(origin[0], origin[1], v1[0]*2, v1[1]*2,
         color='red', width=0.2, head_width=0.4, label='1st eigenvector')

# Projection of data onto the 1st eigenvector
proj = np.outer(scores[:,0], v1)
ax.scatter(proj[:,0], proj[:,1], color='blue', alpha=0.5, label='Projections (1st PC)')

ax.set_aspect('equal')
ax.legend()

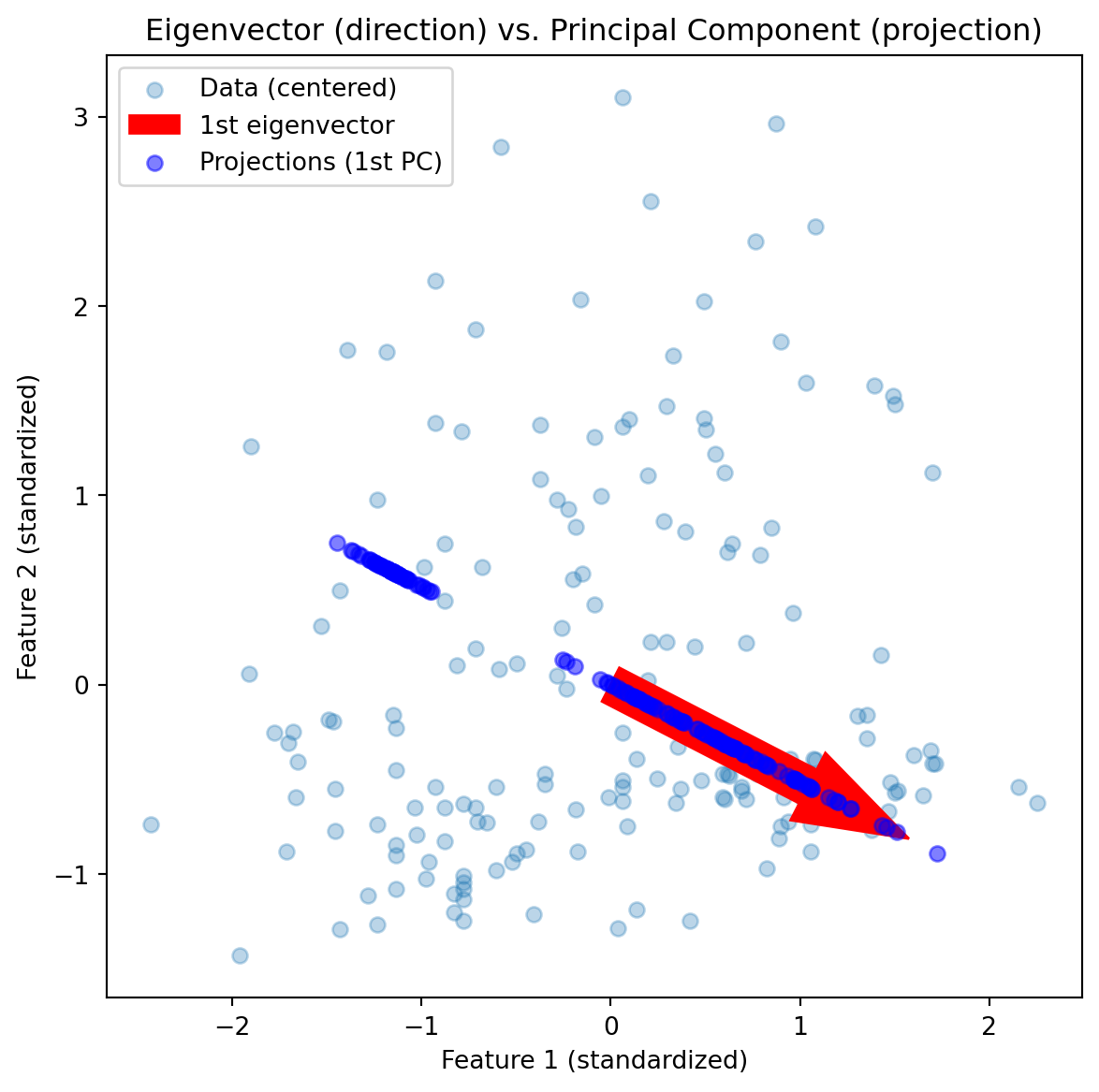

ax.set_title("Eigenvector (direction) vs. Principal Component (projection)")
plt.xlabel("Feature 1 (standardized)")
plt.ylabel("Feature 2 (standardized)")
plt.show()
